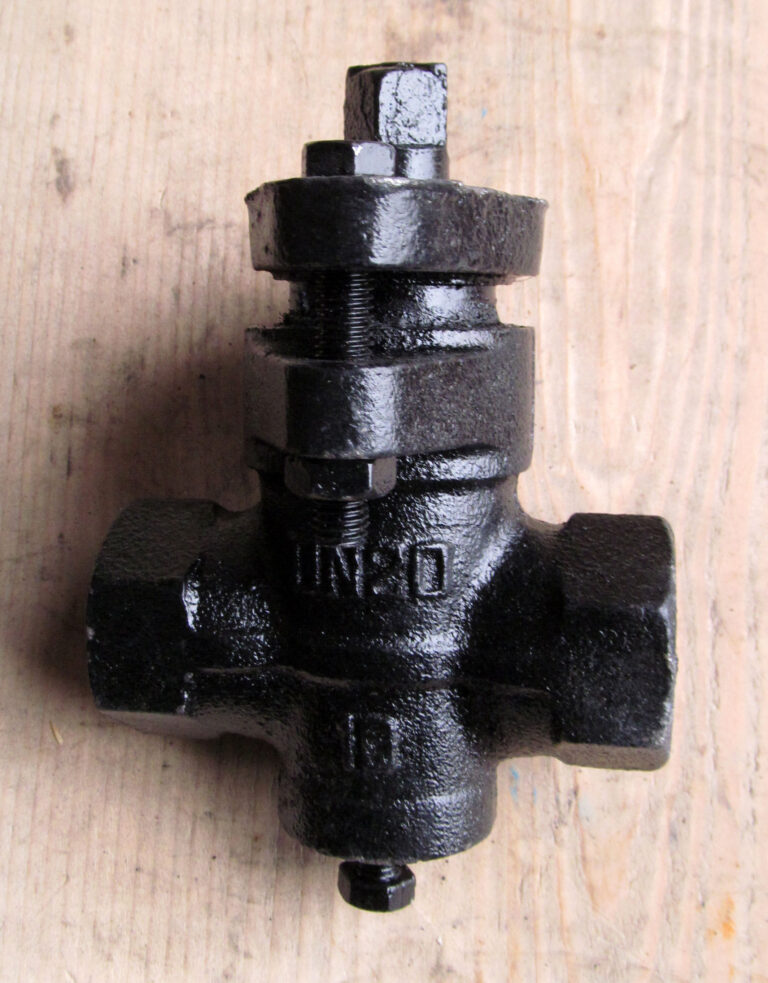

Cast iron threaded plug valve 11ch6bk Pn 10

Cast iron plug valves 11ch6bk PN 10 are used as a shut-off device on pipelines. Their main function is to completely shut off the flow of the working medium, such as water or oil at operating temperatures up to +100°C (for water) and up to +90°C (for oil). Valves 11ch6bk are widely used due to their simple design, reliability and durability.

Valve design

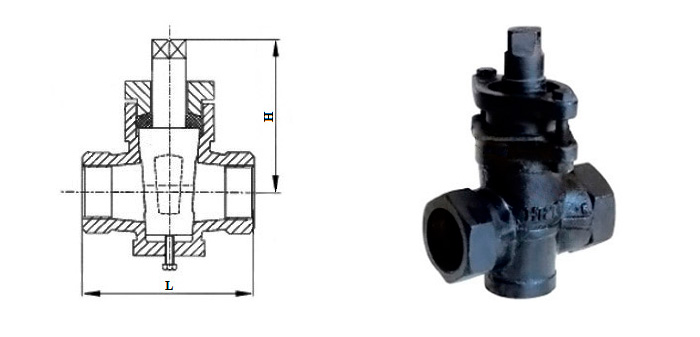

Valve 11ch6bk has a conical design with a shut-off element in the form of a truncated cone with a trapezoidal hole inside. In the open position, the holes of the body and plug coincide, ensuring free passage of the working medium. The main design elements include:

1. Body: Made of grey cast iron.
2. Plug: Also made of cast iron.
3. Gland seal: Impregnated asbestos is used to seal the spindle.
4. Lubricant: A special lubricant is applied between the body and the plug, which prevents corrosion and facilitates the plug's rotation.

To ensure tightness, the sealing surfaces of the plug and body are conical. Sealing against the external environment is achieved by means of a gland seal, which can be tightened with anchor bolts.

Advantages of the valve

1. The simplicity of the design ensures ease of maintenance.
2. Low cost compared to analogues made of other materials (for example, brass or bronze, such as 11b6bk).
3. Compact dimensions allow it to be used even in limited space.
4. Low hydraulic resistance contributes to the efficient operation of the pipeline system.
5. Possibility of installation in any position on the pipeline without limiting the direction of the medium flow.

Disadvantages of the valve

1. Requires significant effort when turning the plug due to high friction between the surfaces.
2. Need for regular lubrication to prevent jamming.
3. Limited temperature range (up to +100°C).

Application of the valve

Valves 11ch6bk are used in the following industries:

1. Water supply - to shut off water flows in domestic and industrial systems.
2. Oil industry - control of oil or oil product flows at processing plants.
3. Mechanical engineering - use of oils in technological processes of equipment production.

Cast iron plug valves 11ch6bk are suitable for use on pipelines with a diameter of up to DN 80 mm.
